The PIC32MX170F256D-V/PT is a 32-bit microcontroller with 256KB of FLASH memory and a maximum operating frequency of 40MHz. It operates at a supply voltage of 3.6V and is packaged in a TQFP-44 package. The device features 13 ADC channels, 34 I/Os, and 5 timers/counters. It also includes peripherals such as a brown-out detect/reset circuit, power-on reset circuit, PWM module, and watchdog timer. The microcontroller is compliant with AEC-Q100 and is available in a tray packaging with 160 units per package. It has an operating temperature range of -40°C to 105°C.
Frequency40MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC32MX170F256D-V/PT technical specifications.
General
| Package/Case | TQFP |
| Core Architecture | PIC |
| Data Bus Width | 32b |
| Interface | I2C, SPI, USB, UART, IrDA, USART, LIN, I2S |
| Max Frequency | 40MHz |
| Max Operating Temperature | 105°C |
| Memory Size | 256KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Number of ADC Channels | 13 |
| Number of I/Os | 34 |
| Number of Programmable I/O | 35 |
| Number of Timers/Counters | 5 |
| Operating Supply Voltage | 3.6V |
| Oscillator Type | Internal |
| Package Quantity | 160 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| RAM Size | 64KB |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100, PIC® 32MX |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC32MX170F256D-V/PT Datasheet
Download the complete datasheet for Microchip PIC32MX170F256D-V/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

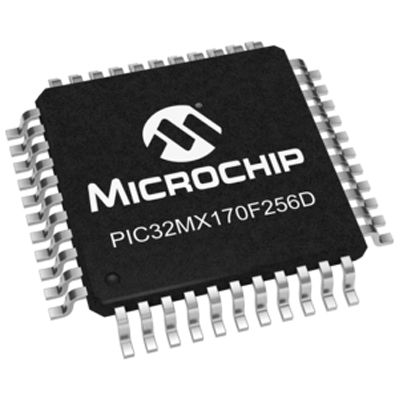

Product Images
