Microchip
PIC32MX210F016C-I/TL
32-bit 40MHz RISC MCU, 16KB Flash, 32KB RAM, 25 I/O, I2C, SPI, USB, UART
32-bit RISC microcontroller featuring a 40 MHz core speed and 16KB FLASH memory. This integrated circuit offers 32KB RAM, 25 I/Os with 23 programmable, and supports I2C, SPI, USB, IrDA, UART, USART, and I2S interfaces. Operating from 2.3V to 3.6V, it includes 5 timers/counters, 2 UART channels, internal oscillator, and peripherals like Brown-out Detect/Reset, POR, PWM, WDT, and DMA. Packaged in a 36-pin QCC with lead-free and RoHS compliance, it operates between -40°C and 85°C.
Frequency40MHz
Quick Jump:
Technical Specifications
Microchip PIC32MX210F016C-I/TL technical specifications.
General
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, I2S
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of I/Os
25
Number of Programmable I/O
23
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
73
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX210F016C-I/TL Datasheet
Download the complete datasheet for Microchip PIC32MX210F016C-I/TL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

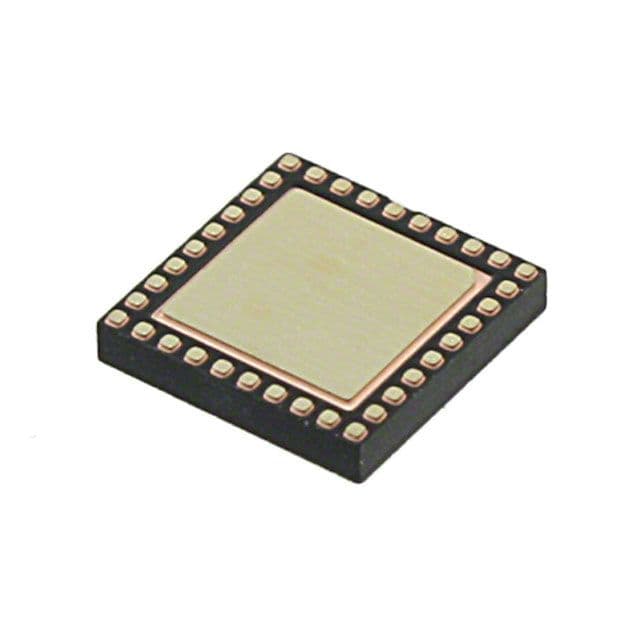

Product Images
