32-bit RISC microcontroller featuring a 40 MHz core frequency and 16KB FLASH memory. This MCU offers extensive connectivity with I2C, SPI, USB, IrDA, UART, USART, and I2S interfaces. It includes 33 programmable I/O pins, 15 timers/counters, and 2 UART channels, supported by peripherals like Brown-out Detect, POR, PWM, WDT, and DMA. Operating within a 2.3V to 3.6V supply range and a temperature range of -40°C to 85°C, this lead-free component is housed in a QCC44 package.
Frequency40MHz
Quick Jump:
Technical Specifications
Microchip PIC32MX210F016D-I/TL technical specifications.
General
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, I2S
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Number of Programmable I/O
33
Number of Timers/Counters
15
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX210F016D-I/TL Datasheet
Download the complete datasheet for Microchip PIC32MX210F016D-I/TL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

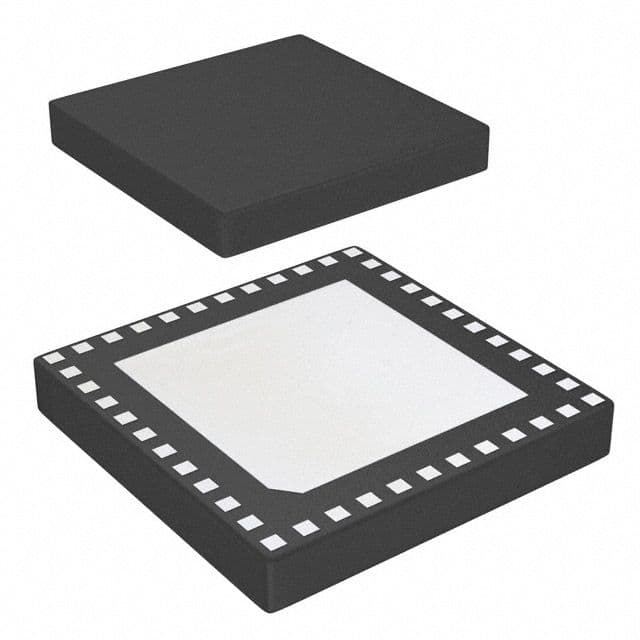

Product Images
