Microchip
PIC32MX220F032D-50I/TL
32-bit MCU, 50MHz, 32KB Flash, 8KB RAM, 33 I/O, I2C, SPI, UART, USB, SM
32-bit microcontroller featuring a 50MHz core frequency and 32KB FLASH memory. This surface mount device offers 33 programmable I/Os, 13 ADC channels, and 5 PWM channels. Integrated peripherals include DMA, I2C (2 channels), SPI (2 channels), UART (2 channels), and USB (1 channel). Operates from 2.3V to 3.6V supply voltage across a -40°C to 85°C temperature range.
Frequency50MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX220F032D-50I/TL technical specifications.
General
| Core Architecture | PIC |
| Data Bus Width | 32b |
| Frequency | 50MHz |
| Height | 0.925mm |
| Interface | I2C, SPI, UART, SCI, USB, IrDA, USART, LIN |
| Length | 6mm |
| Max Frequency | 50MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of ADC Channels | 13 |
| Number of I/Os | 33 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 33 |
| Number of PWM Channels | 5 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 2 |
| Number of USB Channels | 1 |
| Package Quantity | 61 |
| Packaging | Rail/Tube |
| Peripherals | PWM, DMA |
| RAM Size | 8KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC32MX220F032D-50I/TL Datasheet
Download the complete datasheet for Microchip PIC32MX220F032D-50I/TL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

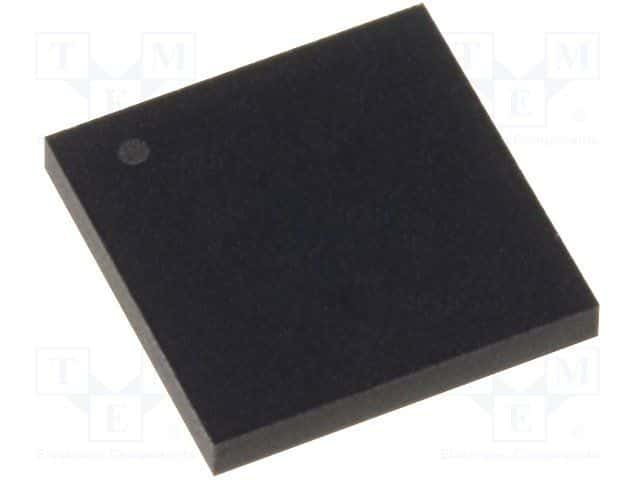

Product Images
