32-bit RISC microcontroller featuring a 40MHz core, 128KB FLASH memory, and 32KB RAM. This QCC44 package offers 33 programmable I/Os, supporting interfaces like I2C (2 channels), SPI (2 channels), USB, UART (2 channels), USART, I2S, and IrDA. Integrated peripherals include a watchdog timer, DMA, and 10 ADC channels, operating within a 2.3V to 3.6V supply range.
Frequency40MHz
Quick Jump:
Technical Specifications
Microchip PIC32MX250F128D-I/TL technical specifications.
General
Address Bus Width
32b
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Height
0.925mm
Interface
I2C, SPI, USB, IrDA, UART, USART, I2S
Lead Free
Lead Free
Length
6mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of ADC Channels
10
Number of I/Os
33
Number of I2C Channels
2
Number of Programmable I/O
33
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
32KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX250F128D-I/TL Datasheet
Download the complete datasheet for Microchip PIC32MX250F128D-I/TL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

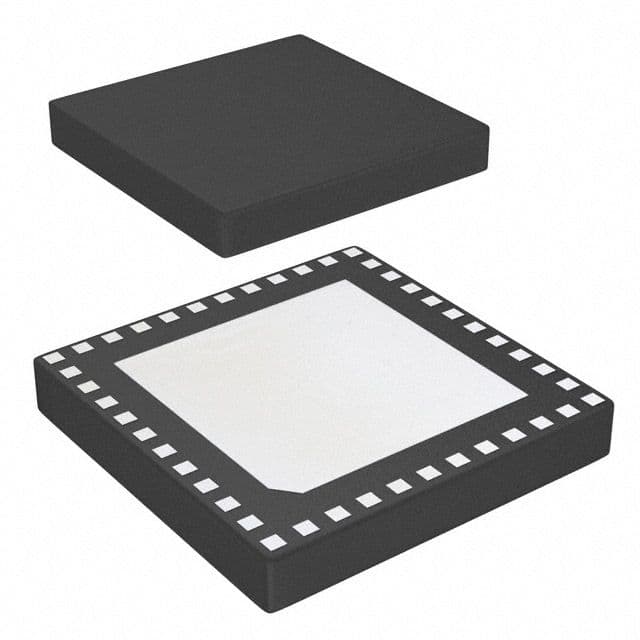

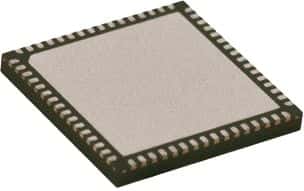

Product Images
