32-bit RISC microcontroller featuring a PIC core architecture, operating at up to 50MHz with 256KB FLASH and 64KB RAM. This through-hole PDIP package offers 21 I/Os, including 19 programmable, and supports multiple interfaces such as I2C (2 channels), SPI (2 channels), USB, UART (2 channels), IrDA, USART, LIN, and I2S. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, WDT, and DMA, with 10 ADC channels and 5 timers/counters. Operating voltage ranges from 2.3V to 3.6V, with an operating temperature range of -40°C to 85°C.
Frequency50MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC32MX270F256B-I/SP technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
32b
Data Rate
25Mbps
Frequency
50MHz
Height
3.8mm
Interface
I2C, SPI, USB, UART, IrDA, USART, LIN, I2S
Length
35.6mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Through Hole
Number of ADC Channels
10
Number of I/Os
21
Number of I2C Channels
2
Number of Programmable I/O
19
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
64KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Weight
0.147798oz
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX270F256B-I/SP Datasheet
Download the complete datasheet for Microchip PIC32MX270F256B-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

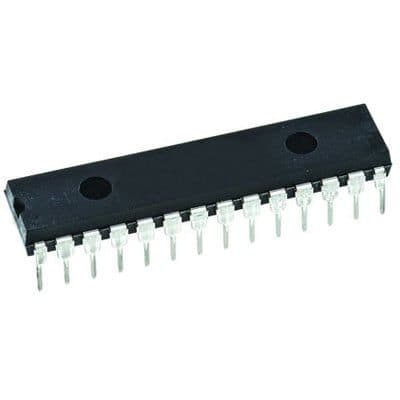

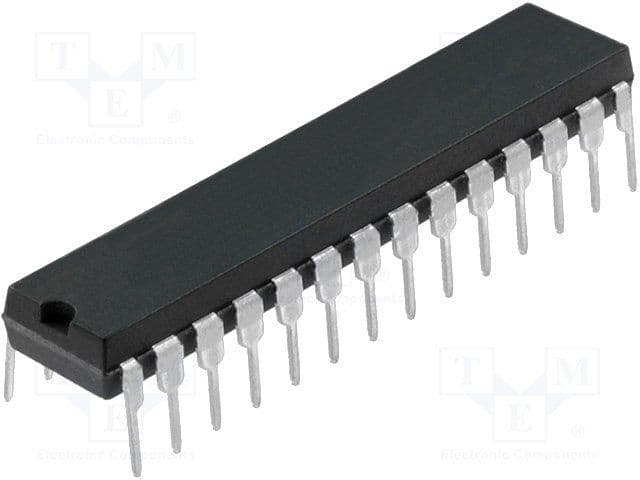

Product Images
