32-bit RISC microcontroller featuring 128KB FLASH memory and 32KB RAM, operating at up to 80MHz. This surface mount device offers 53 programmable I/Os, 16 ADC channels with 1 A/D converter, and multiple communication interfaces including I2C (2 channels), SPI (2 channels), UART (2 channels), USART, LIN, and USB. Integrated peripherals include PWM (5 channels), DMA, and a watchdog timer, all housed in a 9x9mm QFN EP package with a height of 0.95mm. Designed for lead-free and RoHS compliant applications, it operates within a 2.3V to 3.6V supply voltage range and across an industrial temperature range of -40°C to 85°C.
Frequency80MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX340F128H-80I/MR technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
32b
Density
128KB
Frequency
80MHz
Height
0.95mm
Interface
I2C, SPI, IrDA, UART, USART, LIN, USB
Lead Free
Lead Free
Length
9mm
Max Frequency
80MHz
Max Operating Temperature
85°C
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
32
Number of I/Os
53
Number of I2C Channels
2
Number of Programmable I/O
53
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Package Quantity
40
Packaging
Rail/Tube
Peripherals
PWM, DMA, I2C
Radiation Hardening
No
RAM Size
32KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC32
Termination
SMD/SMT
Watchdog Timer
Yes
Width
9mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX340F128H-80I/MR Datasheet
Download the complete datasheet for Microchip PIC32MX340F128H-80I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

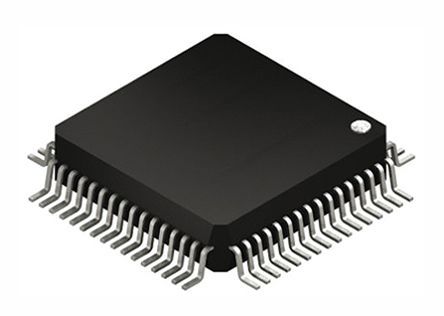

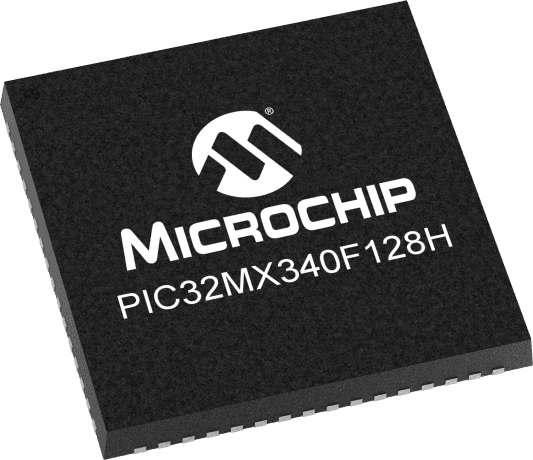

Product Images
