32-bit RISC microcontroller featuring 80MHz operation and 256KB FLASH memory. This surface mount device offers 32KB RAM, 85 programmable I/Os, and multiple communication interfaces including I2C, SPI, UART, and USB. Integrated peripherals include a watchdog timer, DMA, and 5 PWM channels. Operating across a temperature range of -40°C to 85°C, this lead-free component is housed in a 100-pin TQFP package.
Frequency80MHz
PackageTQFP
Current24mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX360F256L-80I/PT technical specifications.
General
| Address Bus Width | 32b |
| Package/Case | TQFP |
| Core Architecture | PIC |
| Data Bus Width | 32b |
| Density | 256KB |
| Frequency | 80MHz |
| Height | 1.05mm |
| Interface | I2C, SPI, UART, IrDA, USART, LIN, USB |
| Lead Free | Lead Free |
| Length | 12mm |
| Max Frequency | 80MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 256KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 16 |
| Number of Bits | 32 |
| Number of I/Os | 85 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 85 |
| Number of PWM Channels | 5 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 2 |
| Oscillator Type | Internal |
| Package Quantity | 119 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 32KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC32 |
| Supply Current | 24mA |
| Termination | SMD/SMT |
| Watchdog Timer | Yes |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC32MX360F256L-80I/PT Datasheet
Download the complete datasheet for Microchip PIC32MX360F256L-80I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

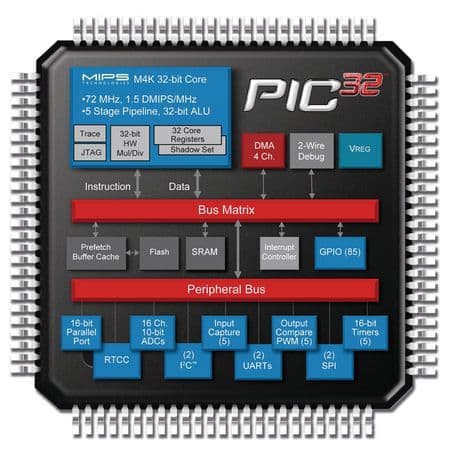

Product Images
