32-bit microcontroller featuring a PIC core architecture, operating at up to 40MHz with a maximum frequency of 80MHz. This surface-mount device offers 32KB of FLASH memory and 8KB of RAM, with 53 I/O pins including 5 programmable I/O. Integrated peripherals include I2C, SPI, RS-232, USB, UART, IrDA, USART interfaces, 5 timers/counters, 2 UART channels, Brown-out Detect/Reset, POR, PWM, and a watchdog timer. Designed for a supply voltage range of 2.3V to 3.6V, it operates between -40°C and 105°C.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX420F032HT-40V/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Interface
I2C, SPI, RS-232, USB, UART, IrDA, USART
Max Frequency
80MHz
Max Operating Temperature
105°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of I/Os
53
Number of Programmable I/O
5
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
8KB
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX420F032HT-40V/PT Datasheet
Download the complete datasheet for Microchip PIC32MX420F032HT-40V/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

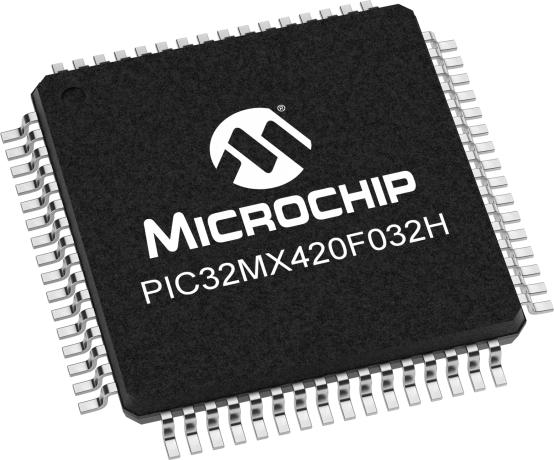

Product Images
