32-bit microcontroller featuring a PIC core architecture, operating at up to 100MHz. 256KB FLASH memory and 64KB RAM. Offers extensive connectivity with I2C (2 channels), SPI (2 channels), UART (5 channels), I2S, and USB interfaces. Includes 28 ADC channels, 5 PWM channels, 5 timers/counters, and 49 programmable I/O pins. Packaged in a TQFP with a 10mm x 10mm footprint, operating from -40°C to 85°C.
Frequency100MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC32MX450F256H-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Height
1.05mm
Interface
I2C, SPI, UART, USB, I2S
Length
10mm
Max Frequency
100MHz
Max Operating Temperature
85°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of ADC Channels
28
Number of I2C Channels
2
Number of Programmable I/O
49
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
5
Operating Supply Voltage
3.6V
Package Quantity
160
Packaging
Tray
RAM Size
64KB
RoHS Compliant
Yes
Series
80MHz
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX450F256H-I/PT Datasheet
Download the complete datasheet for Microchip PIC32MX450F256H-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

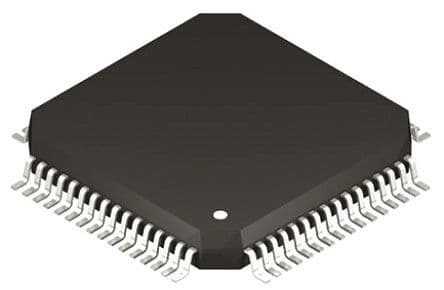

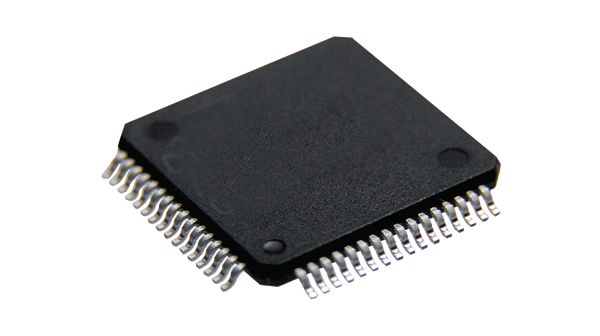

Product Images
