32-bit microcontroller featuring 512KB FLASH memory and 32KB RAM. Operates at up to 80MHz with a 32-bit data bus width. Offers multiple interfaces including I2C, SPI, RS-232, USB, and UART. Includes peripherals such as DMA, PWM, and a watchdog timer. Designed for surface mount with a TFBGA package, operating between -40°C and 105°C.
Frequency80MHz
PackageTFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX460F512LT-80V/BG technical specifications.
General
Package/Case
TFBGA
Core Architecture
PIC
Data Bus Width
32b
Frequency
80MHz
Interface
I2C, SPI, RS-232, USB, UART, IrDA, USART
Max Frequency
80MHz
Max Operating Temperature
105°C
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of I/Os
5
Number of Programmable I/O
5
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
2200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX460F512LT-80V/BG Datasheet
Download the complete datasheet for Microchip PIC32MX460F512LT-80V/BG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

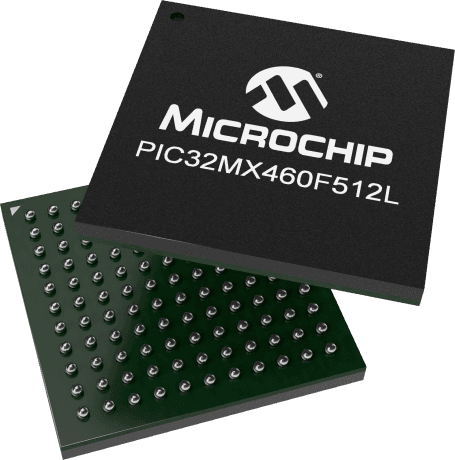

Product Images
