32-bit microcontroller (MCU) featuring a PIC core architecture, operating at up to 80MHz. This surface-mount TQFP package offers 512KB of FLASH memory and 32KB of RAM. Integrated peripherals include I2C, SPI, RS-232, USB, UART, IrDA, and USART interfaces, along with Brown-out Detect/Reset, POR, PWM, WDT, and DMA. With 85 I/Os and 5 programmable I/O pins, this lead-free component supports a supply voltage range of 2.3V to 3.6V and operates from -40°C to 105°C.
Frequency80MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX460F512LT-80V/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Frequency
80MHz
Interface
I2C, SPI, RS-232, USB, UART, IrDA, USART
Lead Free
Lead Free
Max Frequency
80MHz
Max Operating Temperature
105°C
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of I/Os
85
Number of Programmable I/O
5
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX460F512LT-80V/PT Datasheet
Download the complete datasheet for Microchip PIC32MX460F512LT-80V/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

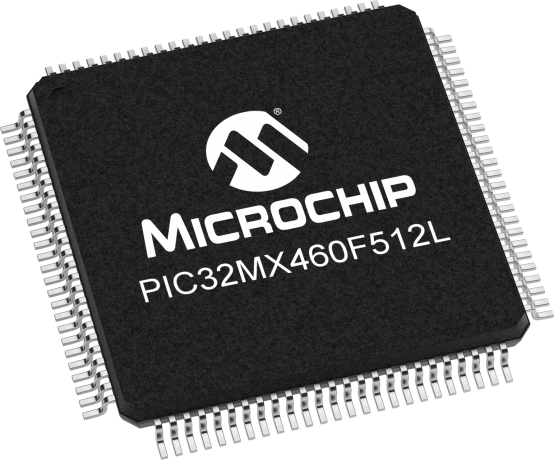

Product Images
