32-bit microcontroller featuring a PIC core architecture, operating at a maximum frequency of 100MHz. This surface mount device offers 512KB of FLASH memory and 128KB of RAM, with 49 I/Os. Integrated peripherals include 28 ADC channels, 2 I2C, 2 SPI, and 4 UART interfaces, along with DMA, PWM, WDT, POR, and Brown-out Detect/Reset. Encased in a 9mm x 9mm x 0.95mm QFN package, it operates from -40°C to 85°C with a supply voltage up to 3.6V.
Frequency100MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX470F512H-I/MR technical specifications.
General
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 32b |
| Height | 0.95mm |
| Interface | I2C, SPI, UART, USB, IrDA, USART |
| Lead Free | Lead Free |
| Length | 9mm |
| Max Frequency | 100MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 512KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of ADC Channels | 28 |
| Number of I/Os | 49 |
| Number of I2C Channels | 2 |
| Number of SPI Channels | 2 |
| Number of UART Channels | 4 |
| Operating Supply Voltage | 3.6V |
| Oscillator Type | Internal |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| RAM Size | 128KB |
| RoHS Compliant | Yes |
| Series | PIC® 32MX |
| Width | 9mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC32MX470F512H-I/MR Datasheet
Download the complete datasheet for Microchip PIC32MX470F512H-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

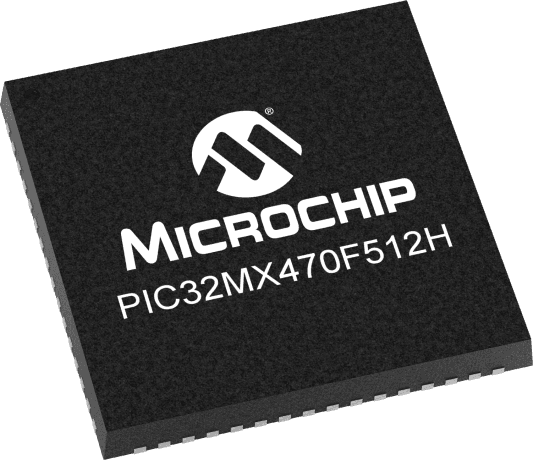

Product Images
