32-bit microcontroller featuring a 100MHz core, 512KB FLASH memory, and 128KB RAM. Offers 49 programmable I/Os, supporting I2C (2 channels), SPI (2 channels), UART (4 channels), USB (1 channel), I2S, IrDA, and USART interfaces. Includes 28 A/D converter channels, 5 PWM channels, 5 timers/counters, and integrated peripherals like DMA, POR, WDT, and Brown-out Detect/Reset. Packaged in a TQFP surface mount case, operating from 2.3V to 3.6V supply voltage, with an extended temperature range of -40°C to 85°C.
Frequency100MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX470F512H-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Frequency
100MHz
Height
1.05mm
Interface
I2C, SPI, UART, USB, IrDA, USART, I2S
Lead Free
Lead Free
Length
10mm
Max Frequency
100MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
28
Number of I/Os
49
Number of I2C Channels
2
Number of Programmable I/O
49
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
4
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
128KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX470F512H-I/PT Datasheet
Download the complete datasheet for Microchip PIC32MX470F512H-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

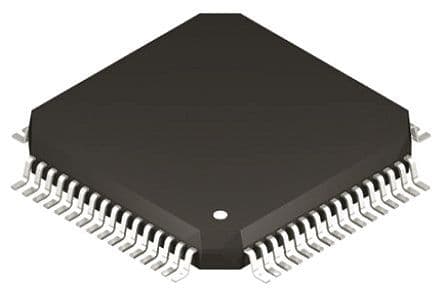

Product Images
