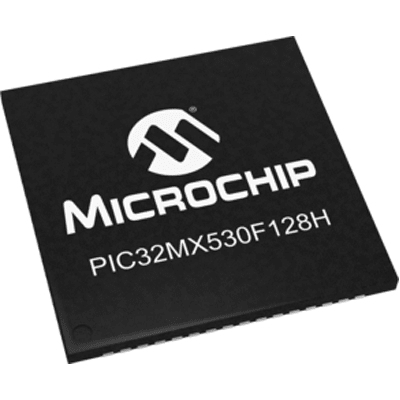

PIC32MX530F128H-I/MR

Name: PIC32MX530F128H-I/MR Microchip
Brand: Microchip
SKU: PIC32MX530F128H-I/MR

32-bit PIC MCU, 80MHz, 128KB Flash, 16KB RAM, QFN, 49 I/O

32-bit RISC microcontroller featuring a PIC core architecture, operating at up to 80MHz with 128KB FLASH and 16KB RAM. This surface mount QFN package offers 49 I/Os, 28 ADC channels, and multiple communication interfaces including I2C (2 channels), SPI (3 channels), UART (4 channels), USB, CAN, Ethernet, and I2S. Integrated peripherals include 5 timers/counters, PWM, WDT, DMA, POR, and Brown-out Detect/Reset. Operates from 2.3V to 3.6V supply voltage with a temperature range of -40°C to 85°C.

Frequency50MHz

PackageQFN

MountingSurface Mount

Quick Jump:

Technical Specifications

Microchip PIC32MX530F128H-I/MR technical specifications.

General

Package/Case	QFN
Core Architecture	PIC
Data Bus Width	32b
Data Rate	25Mbps
Frequency	50MHz
Height	1mm
Interface	I2C, SPI, USB, IrDA, UART, USART, CAN, Ethernet, I2S
Lead Free	Lead Free
Length	9mm
Max Frequency	80MHz
Max Operating Temperature	85°C
Memory Size	128KB
Memory Type	FLASH,
Min Operating Temperature	-40°C
Max Supply Voltage	3.6V
Min Supply Voltage	2.3V
Mount	Surface Mount
Number of ADC Channels	28
Number of I/Os	49
Number of I2C Channels	2
Number of SPI Channels	3
Number of Timers/Counters	5
Number of UART Channels	4
Oscillator Type	Internal
Packaging	Rail/Tube
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening	No
RAM Size	16KB
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	PIC® 32MX
Watchdog Timer	Yes
Width	9mm
