32-bit RISC microcontroller featuring a PIC core architecture, operating at up to 80MHz with 128KB FLASH and 16KB RAM. Offers extensive connectivity including I2C (2 channels), SPI (4 channels), USB, CAN, Ethernet, I2S, and 5 UART channels. Equipped with 48 ADC channels, 81 I/Os, and 5 timers/counters, along with peripherals like DMA, PWM, and WDT. Packaged in a TQFP surface mount case, this lead-free component operates from -40°C to 85°C with supply voltages between 2.3V and 3.6V.
Frequency50MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX530F128L-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Data Rate
25Mbps
Frequency
50MHz
Height
1.1mm
Interface
I2C, SPI, USB, CAN, IrDA, UART, USART, LIN, Ethernet, I2S
Lead Free
Lead Free
Length
12mm
Max Frequency
80MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
48
Number of I/Os
81
Number of I2C Channels
2
Number of SPI Channels
4
Number of Timers/Counters
5
Number of UART Channels
5
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX530F128L-I/PT Datasheet
Download the complete datasheet for Microchip PIC32MX530F128L-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

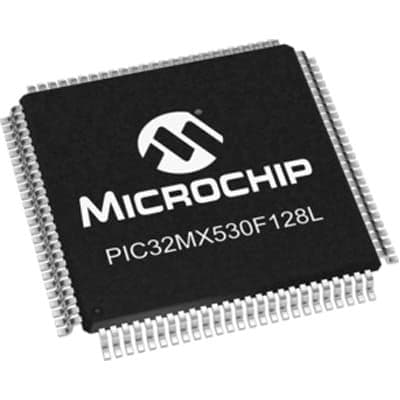

Product Images
