32-bit RISC microcontroller featuring a PIC core architecture, operating at up to 80MHz with 25Mbps data rate. Integrated FLASH memory offers 256KB capacity, complemented by 32KB RAM. Supports extensive interfaces including I2C (2 channels), SPI (4 channels), USB, CAN, UART (5 channels), Ethernet, and I2S. Equipped with 48 ADC channels, 81 I/Os, 5 timers/counters, and peripherals like DMA, PWM, and WDT. Surface mountable in a TQFP package, this lead-free and RoHS compliant component operates from 2.3V to 3.6V, with an industrial temperature range of -40°C to 85°C.
Frequency50MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX550F256L-I/PF technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Data Rate
25Mbps
Frequency
50MHz
Height
1.1mm
Interface
I2C, SPI, USB, CAN, IrDA, UART, USART, LIN, Ethernet, I2S
Lead Free
Lead Free
Length
12mm
Max Frequency
80MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
48
Number of I/Os
81
Number of I2C Channels
2
Number of SPI Channels
4
Number of Timers/Counters
5
Number of UART Channels
5
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX550F256L-I/PF Datasheet
Download the complete datasheet for Microchip PIC32MX550F256L-I/PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

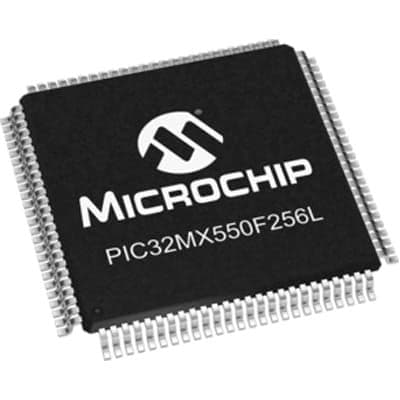

Product Images
