32-bit PIC microcontroller featuring 80MHz operation and 64KB FLASH memory. This surface mount device offers 32KB RAM, 53 programmable I/Os, and multiple communication interfaces including I2C (4 channels), SPI (3 channels), USART, USB, CAN, and UART (6 channels). Integrated peripherals include 5 PWM channels, 5 timers/counters, a watchdog timer, and 16 ADC channels with 1 A/D converter. Operating from 2.3V to 3.6V, this lead-free, RoHS compliant component is housed in a 10mm x 10mm x 1.05mm TQFP package.
Frequency80MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX564F064H-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Frequency
80MHz
Height
1.05mm
Interface
I2C, SPI, USART, USB, CAN, UART
Lead Free
Lead Free
Length
10mm
Max Frequency
80MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
32
Number of I/Os
53
Number of I2C Channels
4
Number of Programmable I/O
53
Number of PWM Channels
5
Number of SPI Channels
3
Number of Timers/Counters
5
Number of UART Channels
6
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX564F064H-I/PT Datasheet
Download the complete datasheet for Microchip PIC32MX564F064H-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

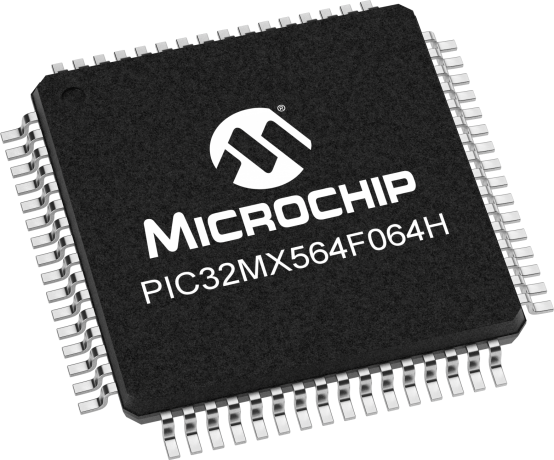

Product Images
