32-bit microcontroller featuring 128KB FLASH memory and 32KB RAM. Operates at up to 80MHz with a 32-bit data bus. Offers extensive connectivity including I2C (5 channels), SPI (4 channels), USART, UART (6 channels), CAN, and USB (1 channel). Includes 16 A/D converter channels, 5 PWM channels, and 5 timers/counters. Packaged in a 121-pin TFBGA, this surface-mount component supports a supply voltage range of 2.3V to 3.6V and operates from -40°C to 85°C.
Frequency80MHz
PackageTFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX564F128L-I/BG technical specifications.
General
Package/Case
TFBGA
Core Architecture
PIC
Data Bus Width
32b
Frequency
80MHz
Height
0.85mm
Interface
I2C, SPI, USART, USB, UART, CAN
Length
10mm
Max Frequency
80MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
32
Number of I/Os
85
Number of I2C Channels
5
Number of Programmable I/O
85
Number of PWM Channels
5
Number of SPI Channels
4
Number of Timers/Counters
5
Number of UART Channels
6
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
184
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX564F128L-I/BG Datasheet
Download the complete datasheet for Microchip PIC32MX564F128L-I/BG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

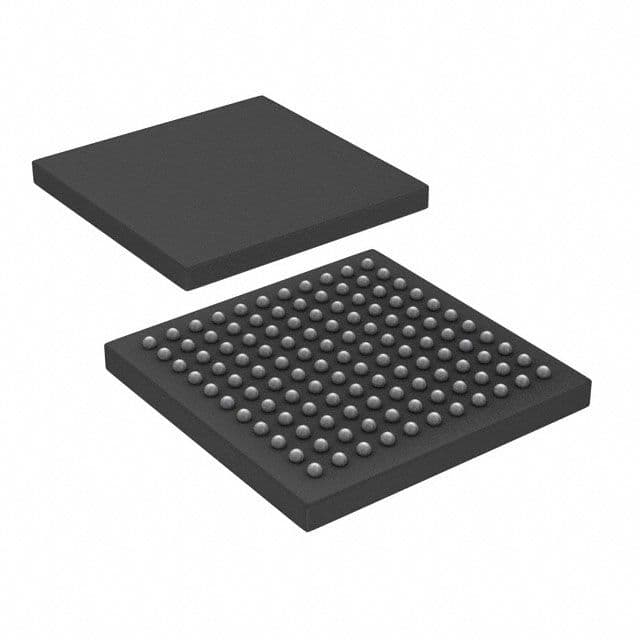

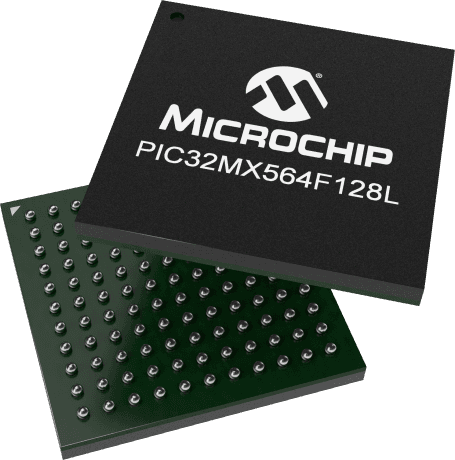

Product Images
