32-bit microcontroller featuring an 80MHz PIC core, 128KB FLASH memory, and 32KB RAM. This surface-mount TQFP package offers 85 programmable I/Os and supports I2C, SPI, USART, USB, UART, and CAN interfaces. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, WDT, and DMA, with 16 ADC channels and 5 PWM channels. Operating voltage ranges from 2.3V to 3.6V, with an operating temperature range of -40°C to 85°C.
Frequency80MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX564F128LT-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Frequency
80MHz
Height
1.05mm
Interface
I2C, SPI, USART, USB, UART, CAN
Length
12mm
Max Frequency
80MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
32
Number of I/Os
85
Number of I2C Channels
5
Number of Programmable I/O
85
Number of PWM Channels
5
Number of SPI Channels
4
Number of Timers/Counters
5
Number of UART Channels
6
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX564F128LT-I/PT Datasheet
Download the complete datasheet for Microchip PIC32MX564F128LT-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

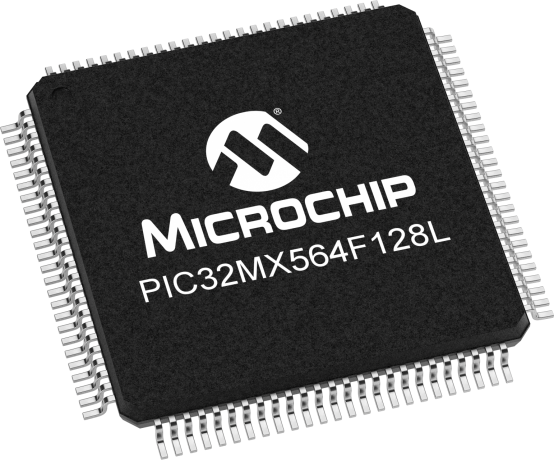

Product Images
