32-bit microcontroller featuring 128KB FLASH memory and 32KB RAM. Operates at up to 80MHz with a 32-bit address and data bus. Offers extensive connectivity including I2C (5 channels), SPI (4 channels), USART, USB, Ethernet (1 channel), and UART (6 channels). Includes 16 ADC channels, 5 PWM channels, 5 timers/counters, and 85 programmable I/Os. Packaged in a 100-pin TQFP for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency80MHz
PackageTQFP
Current19mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX664F128L-I/PT technical specifications.
General
Address Bus Width
32b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Frequency
80MHz
Height
1.05mm
Interface
I2C, SPI, USART, USB, Ethernet, UART
Lead Free
Lead Free
Length
12mm
Max Frequency
80MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
32
Number of Ethernet Channels
1
Number of I/Os
85
Number of I2C Channels
5
Number of Programmable I/O
85
Number of PWM Channels
5
Number of SPI Channels
4
Number of Timers/Counters
5
Number of UART Channels
6
Oscillator Type
Internal
Package Quantity
119
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
32KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 32MX
Supply Current
19mA
Watchdog Timer
Yes
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX664F128L-I/PT Datasheet
Download the complete datasheet for Microchip PIC32MX664F128L-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

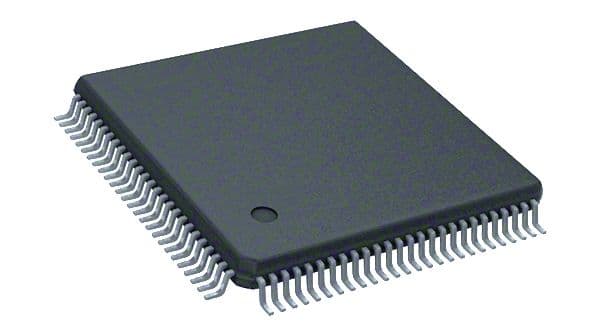

Product Images
