32-bit RISC microcontroller featuring a PIC core architecture operating at up to 80MHz. This surface mount device offers 128KB of FLASH memory and 32KB of RAM, with 53 I/Os and 6 UART channels. Integrated peripherals include I2C, SPI, USB, Ethernet, UART, USART, Brown-out Detect/Reset, POR, PWM, and WDT. Designed for a wide operating temperature range of -40°C to 105°C, with supply voltages from 2.3V to 3.6V.
Frequency80MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX764F128H-V/MR technical specifications.
General
| Package/Case | VQFN |
| Core Architecture | PIC |
| Data Bus Width | 32b |
| Frequency | 80MHz |
| Interface | I2C, SPI, USB, Ethernet, UART, USART |
| Lead Free | Lead Free |
| Max Frequency | 25MHz |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 128KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of I/Os | 53 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 6 |
| Oscillator Type | Internal |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| RAM Size | 32KB |
| RoHS Compliant | Yes |
| Series | PIC® 32MX |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC32MX764F128H-V/MR Datasheet
Download the complete datasheet for Microchip PIC32MX764F128H-V/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

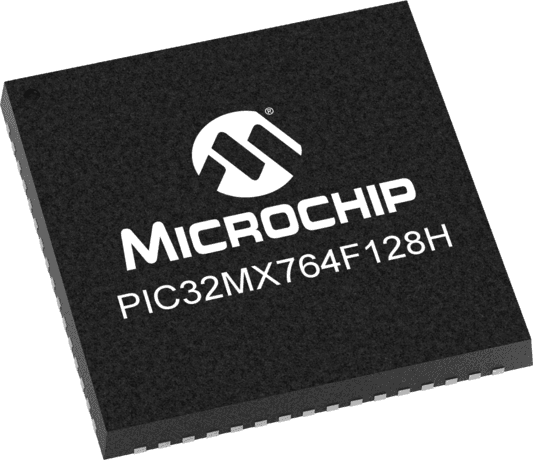

Product Images
