32-bit microcontroller featuring a 200MHz core clock speed and 2MB of FLASH memory with 512KB RAM. This PIC architecture MCU offers 120 programmable I/O pins and supports a wide range of interfaces including Ethernet, USB, I2C, SPI, UART, USART, EBI/EMI, and I2S. Equipped with 48 ADC channels and 9 timers/counters, it includes peripherals like DMA, PWM, WDT, and POR. Operating from a 3.6V supply, this RoHS compliant component is housed in a TQFP package and rated for industrial temperatures from -40°C to 85°C.
Frequency200MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC32MZ2048ECG144T-I/PH technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Interface
I2C, SPI, USB, UART, Ethernet, USART, EBI/EMI, I2S
Max Frequency
200MHz
Max Operating Temperature
85°C
Memory Size
2MB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of ADC Channels
48
Number of I/Os
120
Number of Programmable I/O
120
Number of Timers/Counters
9
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
900
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
512KB
RoHS Compliant
Yes
Series
PIC® 32MZ
Watchdog Timer
Yes
Weight
0.04653oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MZ2048ECG144T-I/PH Datasheet
Download the complete datasheet for Microchip PIC32MZ2048ECG144T-I/PH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

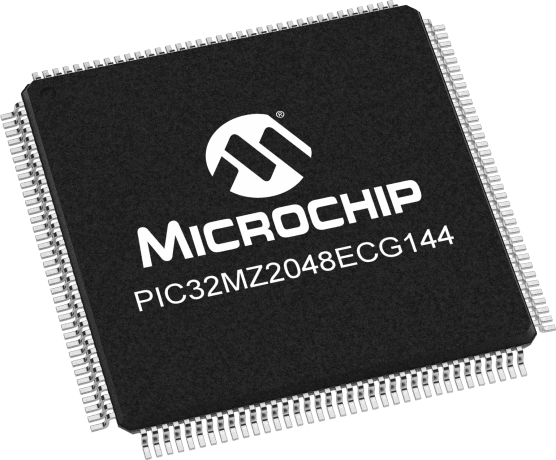

Product Images
