The RE46C165S16F is a single-channel voltage regulator with a maximum operating temperature of 75°C and a minimum operating temperature of -25°C. It is a surface-mount device with a package quantity of 50 units per rail/tube packaging. The regulator has a maximum supply voltage of 12V and a minimum supply voltage of 6V, with an operating supply current of 6uA and a quiescent current of 5.5uA. The device is RoHS compliant and not Reach SVHC compliant.
PackageSOIC
Current4uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip RE46C165S16F technical specifications.
General
| Package/Case | SOIC |
| Height | 0.25mm |
| Lead Free | Lead Free |
| Length | 9.9mm |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 16mA |
| Max Supply Voltage | 12V |
| Min Supply Voltage | 6V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Operating Supply Current | 6uA |
| Output Type | Voltage |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Supply | 12V |
| Quiescent Current | 5.5uA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 4uA |
| Width | 3.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip RE46C165S16F Datasheet
Download the complete datasheet for Microchip RE46C165S16F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

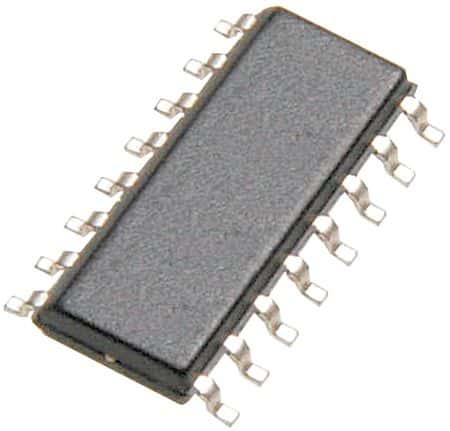

Product Images
