Smart Card Bridge IC with USB, SPI, and UART serial interfaces. Features a 16-pin QFN package, measuring 5.1mm x 5.1mm x 0.95mm, designed for surface mount applications. Operates within a supply voltage range of 3V to 5.5V, with a maximum operating temperature of 85°C. Includes 3 timers/counters and is RoHS compliant.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SEC1110I-A5-02 technical specifications.
General
Package/Case
QFN
Height
0.95mm
Interface
SPI, Serial, USB, UART
Length
5.1mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Timers/Counters
3
Package Quantity
490
Packaging
Tray
RoHS Compliant
Yes
Width
5.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip SEC1110I-A5-02 Datasheet
Download the complete datasheet for Microchip SEC1110I-A5-02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

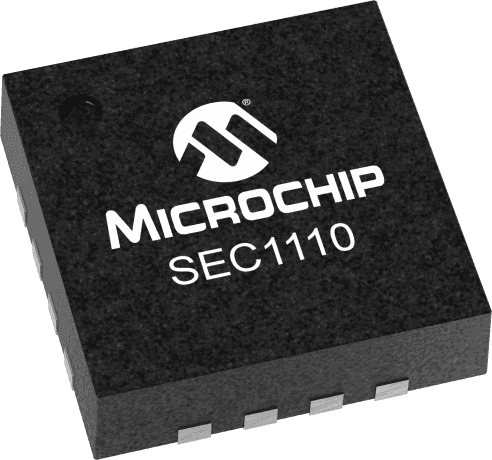

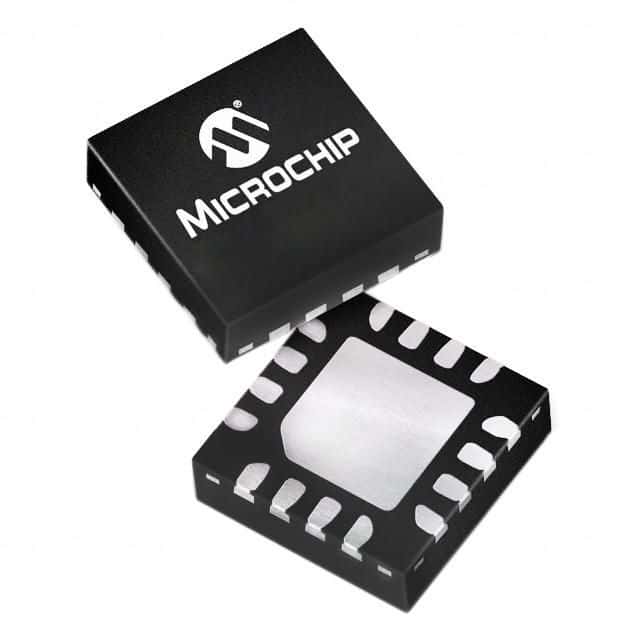

Product Images
