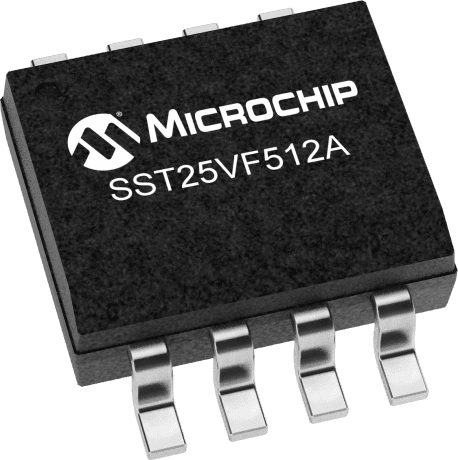

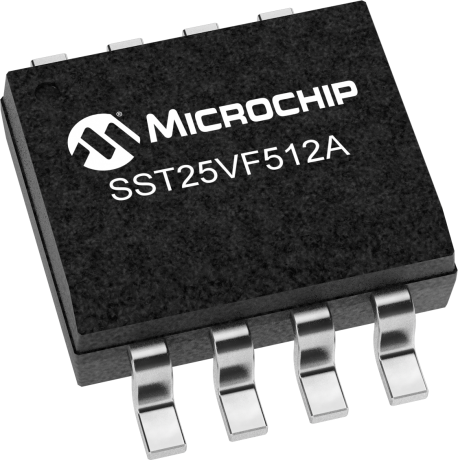

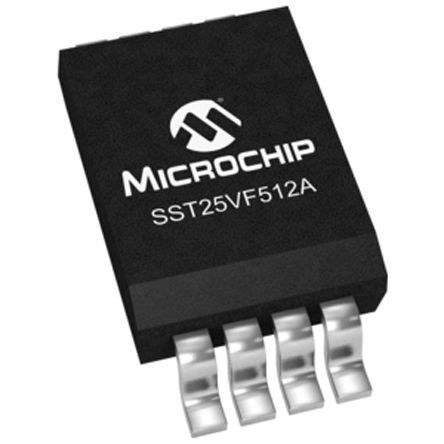

512Kb NOR Flash memory with Serial SPI interface, operating at 3.3V. Features an 8-bit data bus, 16-bit address bus, and a maximum frequency of 33MHz. This industrial-grade component offers a 12ns access time and operates within a temperature range of -40°C to 85°C. Packaged in a lead-free, RoHS-compliant 8-pin SOIC, it is supplied in tubes.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip SST25VF512A-33-4I-SAE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 33ns |
| Access Time-Max | 12ns |
| Address Bus Width | 16b |
| Package/Case | SOIC |
| Data Bus Width | 8b |
| Density | 512Kb |
| Height | 1.5mm |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Frequency | 33MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 512Kb |
| Memory Type | NOR, , FLASH, NAND |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Number of Words | 64000 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SST25 |
| Supply Current | 10mA |
| Supply Voltage-Nom | 3.6V |
| Sync/Async | Synchronous |
| Temperature Grade | INDUSTRIAL |
| Width | 4mm |
| Word Size | 8b |
| RoHS | Compliant |
