64Mb NOR Flash memory with SPI, Dual SPI, and Quad SPI interface. Features 8M x 8 organization, 3ns maximum access time, and operates from 2.7V to 3.6V with a 3V nominal supply. This surface mount component is housed in an 8-pin SOIC package, offering 256B page size and a temperature range of -40°C to 85°C. RoHS compliant and lead-free.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SST26VF064B-104I/SM technical specifications.
General
Access Time-Max
3ns
Package/Case
SOIC
Density
64Mb
Height
1.98mm
Interface
SPI, Serial
Lead Free
Lead Free
Length
5.26mm
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64Mb
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Operating Supply Voltage
3V
Packaging
Rail/Tube
Page Size
256B
RoHS Compliant
Yes
Series
SST26 SQI®
Width
5.25mm
Compliance
RoHS
Compliant
Datasheet
Microchip SST26VF064B-104I/SM Datasheet
Download the complete datasheet for Microchip SST26VF064B-104I/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

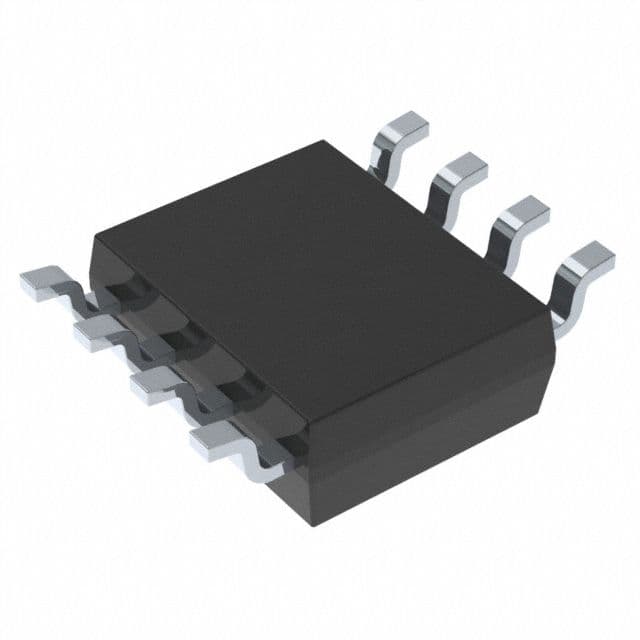

Product Images
