64Mb NOR Flash Memory, 16-bit data bus width, 22-bit address bus width, and 90ns access time. This asynchronous memory features a parallel interface and operates from a 2.7V to 3.6V supply voltage, with a nominal 3.3V. Packaged in a 48-pin TFBGA with 0.80mm pitch, this RoHS compliant component is suitable for operation between 0°C and 70°C.
PackageTFBGA
Current18mA
Quick Jump:
Technical Specifications
Microchip SST38VF6401-90-5C-B3KE technical specifications.
General
Access Time
90ns
Access Time-Max
90ns
Address Bus Width
22b
Package/Case
TFBGA
Data Bus Width
16b
Density
64Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
70°C
Max Supply Voltage
3.6V
Memory Size
64Mb
Memory Type
NOR, , Non-Volatile, FLASH
Min Operating Temperature
0°C
Min Supply Voltage
2.7V
Operating Supply Voltage
3.3V
Package Quantity
480
Packaging
Tray
Page Size
4Words
Radiation Hardening
No
RoHS Compliant
Yes
Series
SST38
Supply Current
18mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Microchip SST38VF6401-90-5C-B3KE Datasheet
Download the complete datasheet for Microchip SST38VF6401-90-5C-B3KE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

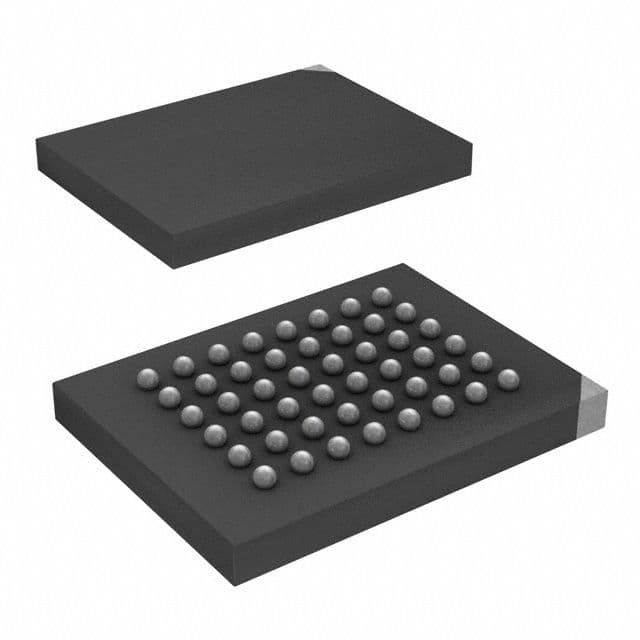

Product Images
