64Mb NOR Flash Memory, 16-bit data bus width, 22-bit address bus width, 90ns access time. Features a 2.7V to 3.6V operating supply voltage range, with a nominal 3.3V. Surface mountable in a 48-pin TSOP package, this non-volatile memory offers parallel interface and asynchronous operation. ROHS compliant and lead-free, with a maximum operating temperature of 70°C.
PackageTSOP
Current18mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SST38VF6401-90-5C-EKE technical specifications.
General
Access Time
90ns
Access Time-Max
90ns
Address Bus Width
22b
Package/Case
TSOP
Data Bus Width
16b
Density
64Mb
Height
1.05mm
Interface
Parallel
Lead Free
Lead Free
Length
18.5mm
Max Operating Temperature
70°C
Max Supply Voltage
3.6V
Memory Size
64Mb
Memory Type
NOR, , Non-Volatile, FLASH
Min Operating Temperature
0°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Operating Supply Voltage
3.3V
Package Quantity
96
Packaging
Tray
Page Size
4Words
Radiation Hardening
No
RoHS Compliant
Yes
Series
SST38
Supply Current
18mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Width
12.2mm
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Microchip SST38VF6401-90-5C-EKE Datasheet
Download the complete datasheet for Microchip SST38VF6401-90-5C-EKE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

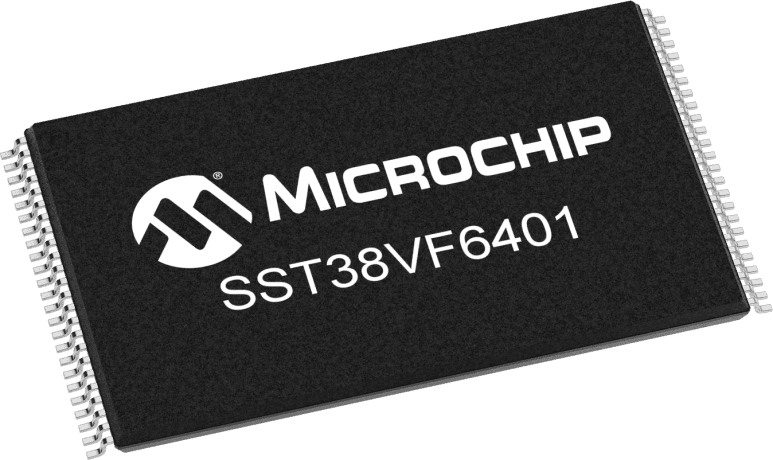

Product Images
