Microchip
SST39LF010-45-4C-MME
128K X 8 FLASH 3V PROM, 45 ns, PBGA34, 4 X 6 MM, 0.50 MM PITCH, ROHS COMPLIANT, MO-225, WFBGA-34
Current20mA
Quick Jump:
Technical Specifications
Microchip SST39LF010-45-4C-MME technical specifications.
General
Access Time
45ns
Access Time-Max
45ns
Address Bus Width
17b
Data Bus Width
8b
Density
1Mb
Interface
Parallel
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Memory Size
1Mb
Memory Type
NOR, , Non-Volatile, FLASH
Min Supply Voltage
3V
Number of Words
128000
Operating Supply Voltage
3.3V
Package Quantity
740
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
SST39 MPF™
Supply Current
20mA
Sync/Async
Asynchronous
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Microchip SST39LF010-45-4C-MME Datasheet
Download the complete datasheet for Microchip SST39LF010-45-4C-MME to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

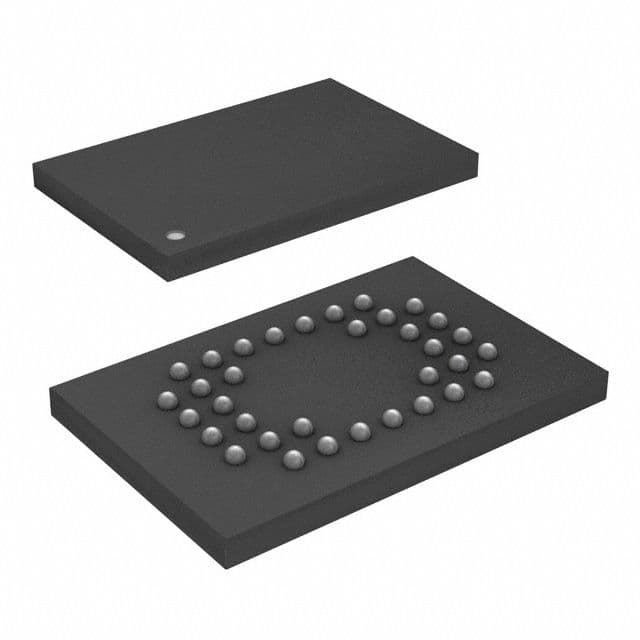

Product Images
