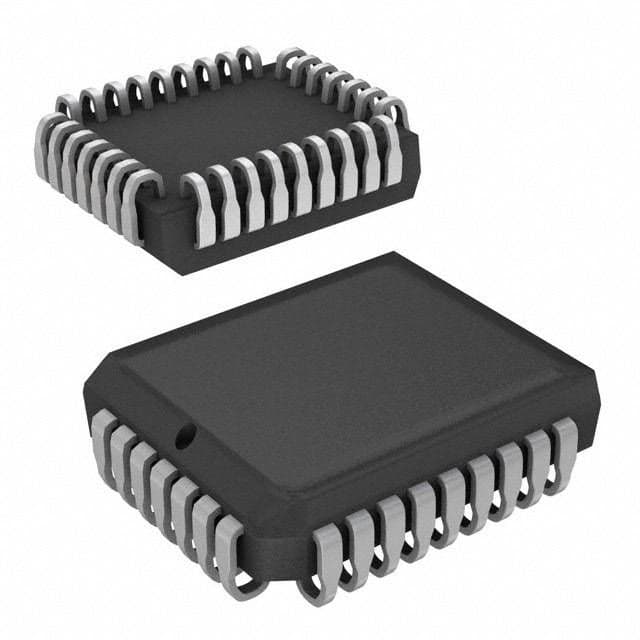

1Mb NOR Flash memory with 128K x 8 organization, featuring a 45ns access time. This non-volatile memory component operates with a 5V supply voltage and an 8-bit data bus width. It is housed in a PLCC package, is RoHS compliant, and offers an operating temperature range of -40°C to 85°C. The interface is parallel and asynchronous, supporting a 17-bit address bus.
PackagePLCC
Current25mA
Quick Jump:
Technical Specifications
Microchip SST39SF010A-45-4I-NHE technical specifications.
General
Access Time
45ns
Access Time-Max
45ns
Address Bus Width
17b
Package/Case
PLCC
Data Bus Width
8b
Density
1Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
1Mb
Memory Type
NOR, , Non-Volatile, FLASH
Min Supply Voltage
4.5V
Number of Words
128000
Operating Supply Voltage
5V
Package Quantity
30
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
SST39 MPF™
Supply Current
25mA
Supply Voltage-Nom
5.5V
Sync/Async
Asynchronous
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Microchip SST39SF010A-45-4I-NHE Datasheet
Download the complete datasheet for Microchip SST39SF010A-45-4I-NHE to view detailed technical specifications.
