4Mb NOR Flash memory IC with 512K x 8 organization, featuring 55ns access time. This asynchronous, parallel interface component operates from a 4.5V to 5.5V supply, with a typical 5V operating voltage and 25mA supply current. Packaged in a 32-pin PLCC for surface mounting, it offers 8-bit data bus width and a 19-bit address bus. The device is lead-free and RoHS compliant, suitable for operation between 0°C and 70°C.
PackagePLCC
Current25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SST39SF040-55-4C-NHE-T technical specifications.
General
Access Time
55ns
Access Time-Max
55ns
Address Bus Width
19b
Package/Case
PLCC
Data Bus Width
8b
Density
4Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
70°C
Max Supply Voltage
5.5V
Memory Size
4Mb
Memory Type
NOR, , FLASH
Min Operating Temperature
0°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Words
512000
Operating Supply Voltage
5V
Package Quantity
750
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
SST39 MPF™
Supply Current
25mA
Sync/Async
Asynchronous
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Microchip SST39SF040-55-4C-NHE-T Datasheet
Download the complete datasheet for Microchip SST39SF040-55-4C-NHE-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

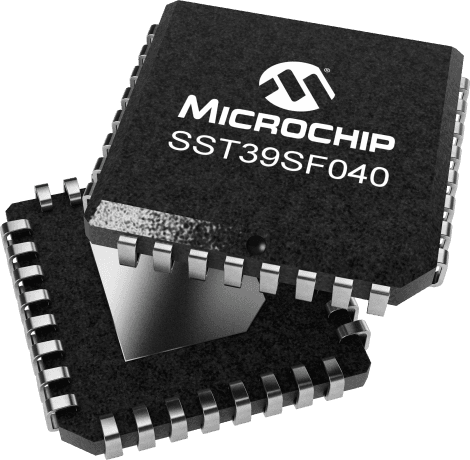

Product Images
