32Mb NOR Flash memory with a 16-bit data bus width and 21-bit address bus. Features a 70ns access time and operates from a 2.7V to 3.6V supply voltage, with a nominal 3.3V. This surface mount component is housed in a TSOP package and offers asynchronous interface operation. It is RoHS compliant and suitable for a wide operating temperature range of -40°C to 85°C.
PackageTSOP
Current15mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SST39VF3201B-70-4I-EKE-T technical specifications.
General
Access Time
70ns
Access Time-Max
70ns
Address Bus Width
21b
Package/Case
TSOP
Data Bus Width
16b
Density
32Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
32Mb
Memory Type
NOR, , Non-Volatile, FLASH
Min Supply Voltage
2.7V
Mount
Surface Mount
Operating Supply Voltage
3.3V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
SST39 MPF™
Supply Current
15mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Microchip SST39VF3201B-70-4I-EKE-T Datasheet
Download the complete datasheet for Microchip SST39VF3201B-70-4I-EKE-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

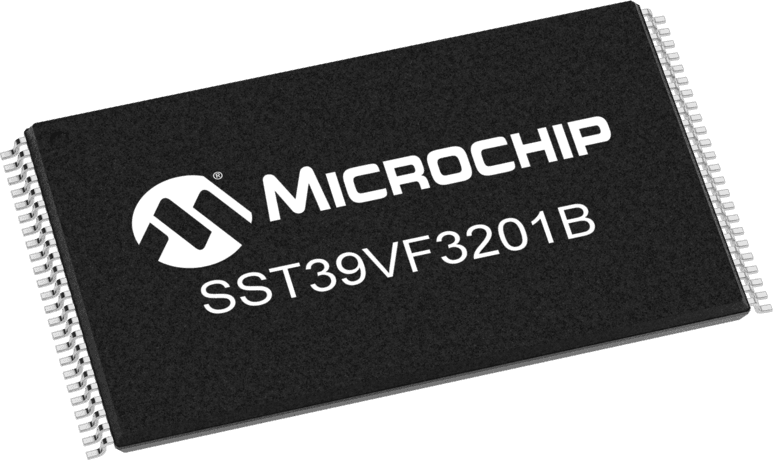

Product Images
