32Mb NOR Flash memory with a 16-bit data bus and 21-bit address bus. Features a 70ns maximum access time and operates from a 2.7V to 3.6V supply voltage. This asynchronous interface component is housed in a TSOP package and is RoHS compliant. Ideal for embedded systems requiring reliable, high-density non-volatile storage.
PackageTSOP
Current18mA
Quick Jump:
Technical Specifications
Microchip SST39VF3202-70-4I-EKE technical specifications.
General
Access Time-Max
70ns
Address Bus Width
21b
Package/Case
TSOP
Data Bus Width
16b
Density
32Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
18mA
Max Supply Voltage
3.6V
Memory Size
32Mb
Memory Type
NOR, , FLASH
Min Supply Voltage
2.7V
Operating Supply Voltage
3.3V
Package Quantity
96
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
SST39 MPF™
Supply Current
18mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Microchip SST39VF3202-70-4I-EKE Datasheet
Download the complete datasheet for Microchip SST39VF3202-70-4I-EKE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

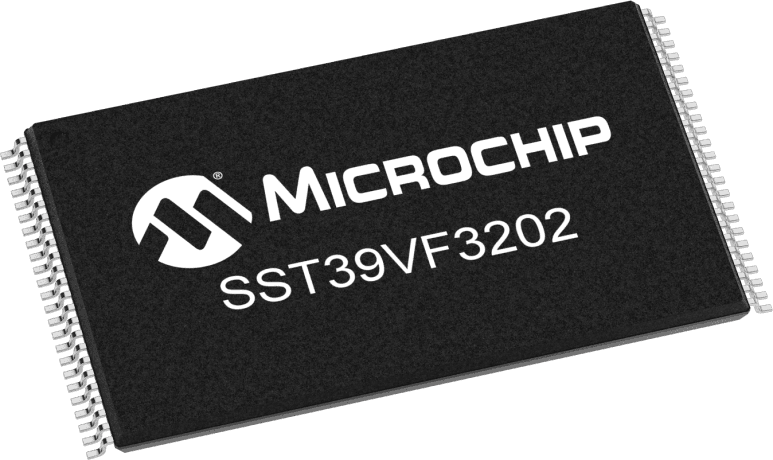

Product Images
