Technical Specifications
Microchip SST39VF801C-70-4C-MAQE-T technical specifications.
General
Access Time-Max
70ns
Address Bus Width
19b
Data Bus Width
16b
Density
8Mb
Interface
Parallel
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Memory Size
8Mb
Memory Type
NOR, , FLASH
Min Supply Voltage
2.7V
Number of Words
512000
Operating Supply Voltage
3.3V
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
SST39 MPF™
Supply Current
18mA
Sync/Async
Asynchronous
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Microchip SST39VF801C-70-4C-MAQE-T Datasheet
Download the complete datasheet for Microchip SST39VF801C-70-4C-MAQE-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

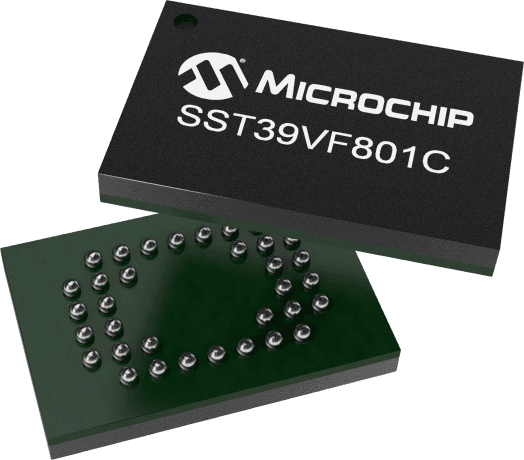

Product Images
