8Mb Parallel Flash Memory, 512K x 16 bit organization, offering 70ns access time. Features a 16-bit data bus and 19-bit address bus, operating from a 2.7V to 3.6V supply. This asynchronous NOR Flash memory is housed in a TSOP package, suitable for a wide temperature range of -40°C to 85°C.
Frequency5MHz
PackageTSOP
Current18mA
Quick Jump:
Technical Specifications
Microchip SST39VF801C-70-4I-EKE technical specifications.
General
Access Time
70ns
Access Time-Max
70ns
Address Bus Width
19b
Boot Block
Bottom
Package/Case
TSOP
Data Bus Width
16b
Density
8Mb
Frequency
5MHz
Height
1.05mm
Interface
Parallel
Lead Free
Lead Free
Length
18.5mm
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
8Mb
Memory Type
NOR, , Non-Volatile, FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Number of Words
512000
Operating Supply Voltage
3.3V
Package Quantity
96
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SST39 MPF™
Supply Current
18mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Width
12.2mm
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Microchip SST39VF801C-70-4I-EKE Datasheet
Download the complete datasheet for Microchip SST39VF801C-70-4I-EKE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

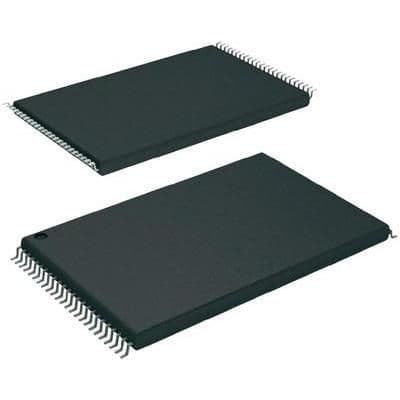

Product Images
