Microchip
SST39WF1601-70-4C-MAQE
1M X 16 FLASH 1.8V PROM, 70 ns, PBGA48, 4 X 6 MM, ROHS COMPLIANT, MO-207CB-4, WFBGA-48
Current10mA
Quick Jump:
Technical Specifications
Microchip SST39WF1601-70-4C-MAQE technical specifications.
General
Access Time
70ns
Access Time-Max
70ns
Address Bus Width
20b
Data Bus Width
16b
Density
16Mb
Interface
Parallel
Max Operating Temperature
70°C
Max Supply Voltage
1.95V
Memory Size
16Mb
Memory Type
NOR, , FLASH
Min Operating Temperature
0°C
Min Supply Voltage
1.65V
Operating Supply Voltage
1.8V
Package Quantity
740
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
No
Series
SST39 MPF™
Supply Current
10mA
Sync/Async
Asynchronous
Word Size
16b
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip SST39WF1601-70-4C-MAQE Datasheet
Download the complete datasheet for Microchip SST39WF1601-70-4C-MAQE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

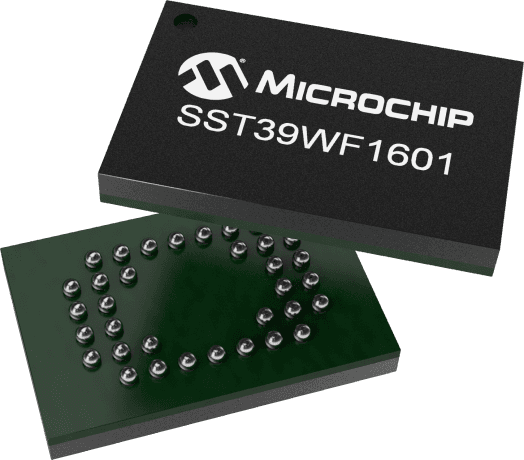

Product Images
