PackageSOIC
Current25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY100ELT22LZG-TR technical specifications.
General
| Package/Case | SOIC |
| Channel Type | Unidirectional |
| High Level Output Current | -50mA |
| Lead Free | Lead Free |
| Logic Function | Translator |
| Low Level Output Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.8V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Circuits | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Propagation Delay | 300ps |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 100ELT |
| Supply Current | 25mA |
| Technology | ECL |
| Turn-On Delay Time | 600ps |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SY100ELT22LZG-TR Datasheet
Download the complete datasheet for Microchip SY100ELT22LZG-TR to view detailed technical specifications.
No datasheet is available for this part.

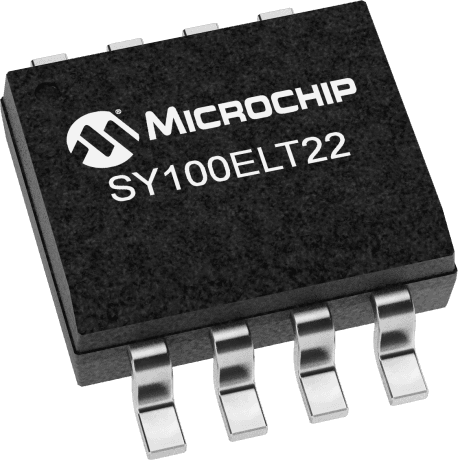

Product Images
