Surface mount 4-line to 1-line multiplexer, featuring complementary outputs and a 0.475ns propagation delay. This logic IC operates from a 3V to 5.5V supply, with a typical 5V operating voltage. Packaged in a 20-pin TSSOP with dimensions of 6.5mm x 4.4mm x 1.1mm, it is RoHS compliant and designed for a temperature range of -40°C to 85°C.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY100EP57VK4G technical specifications.
General
Package/Case
TSSOP
Height
1.1mm
Independent Circuits
1
Lead Free
Lead Free
Length
6.5mm
Logic Function
Mux
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
4
Number of Input Lines
4
Number of Inputs
4
Number of Output Lines
1
Number of Outputs
1
Operating Supply Voltage
5V
Package Quantity
74
Packaging
Rail/Tube
Propagation Delay
0.475ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
100EP
Supply Type
Dual
Throw Configuration
4PST
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Microchip SY100EP57VK4G Datasheet
Download the complete datasheet for Microchip SY100EP57VK4G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

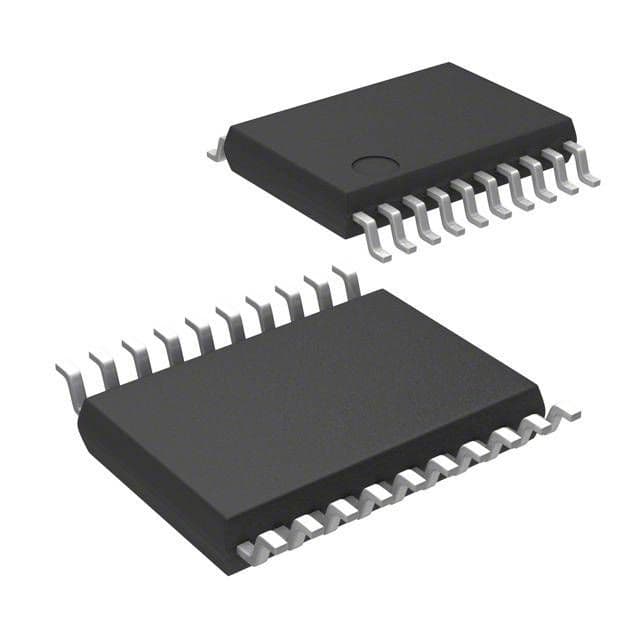

Product Images
