Dual 2x2 digital crosspoint switch IC supporting 3Gbps data rates and up to 3GHz maximum frequency. Features two independent 2x2 switch matrices with DPDT throw configuration. Operates from a 2.3V to 3.6V supply voltage, with a nominal 3.3V. Packaged in a 32-pin TQFP surface mount package, this lead-free and RoHS compliant component offers a propagation delay of 350ps.
Frequency3GHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY55858UHG technical specifications.
General
Package/Case
TQFP
Data Rate
3Gbps
Independent Circuits
2
Lead Free
Lead Free
Max Frequency
3GHz
Max Input Voltage
3.6V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of Channels
2
Number of Inputs
2
Number of Outputs
2
Operating Supply Voltage
3.3V
Package Quantity
250
Packaging
Tray
Propagation Delay
350ps
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SuperLite™
Supply Type
Single
Supply Voltage-Nom
3.6V
Termination
SMD/SMT
Throw Configuration
DPDT
Compliance
RoHS
Compliant
Datasheet
Microchip SY55858UHG Datasheet
Download the complete datasheet for Microchip SY55858UHG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

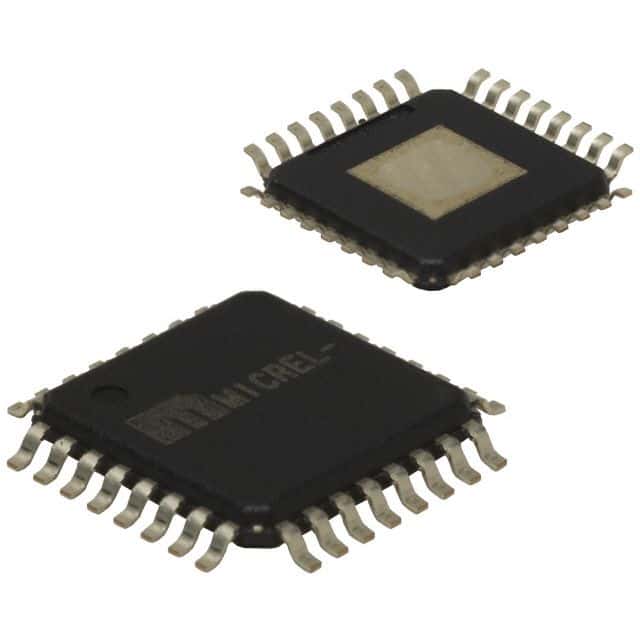

Product Images
