Low skew clock driver with 4 outputs, supporting up to 5GHz operating frequency and 10.7Gbps data rate. Features CML input and a propagation delay of 0.26ns. Operates within a 2.375V to 3.6V supply voltage range and is RoHS compliant. Designed for surface mount applications with a QCC16 package.
Frequency5GHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY58012UMG-TR technical specifications.
General
| Data Rate | 10.7Gbps |
| Input | CML |
| Lead Free | Lead Free |
| Max Frequency | 5GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Outputs | 4 |
| Operating Frequency-Max | 5GHz |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Propagation Delay | 0.26ns |
| RoHS Compliant | Yes |
| Series | Precision Edge® |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SY58012UMG-TR Datasheet
Download the complete datasheet for Microchip SY58012UMG-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

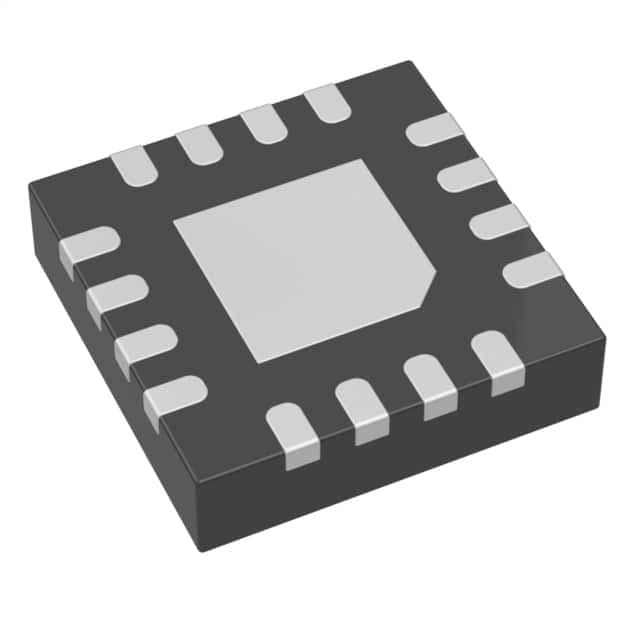

Product Images
