Low skew clock driver IC, operating at up to 3GHz, featuring 4 total outputs with 2 true and 0 inverted outputs. This surface mount component utilizes CML input and a QFN package, with an operating supply voltage of 2.5V. It offers a propagation delay and turn-on delay time of 0.42ns, a maximum input voltage of 1.2V, and operates within a temperature range of -40°C to 85°C. RoHS compliant and lead-free.
Frequency3GHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY58608UMG-TR technical specifications.
General
| Package/Case | QFN |
| Frequency | 3GHz |
| Input | CML |
| Lead Free | Lead Free |
| Max Frequency | 3GHz |
| Max Input Voltage | 1.2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 2.625V |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 2.5V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Propagation Delay | 0.42ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Precision Edge® |
| Supply Voltage-Nom | 2.635V |
| Turn-On Delay Time | 0.42ns |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SY58608UMG-TR Datasheet
Download the complete datasheet for Microchip SY58608UMG-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

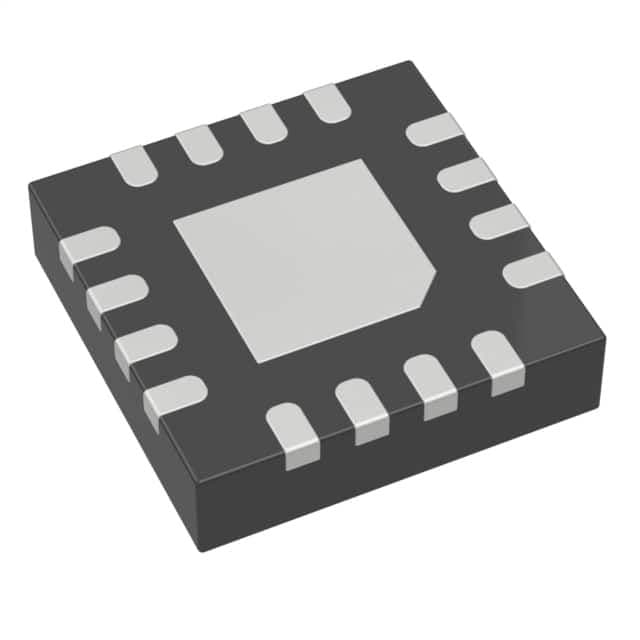

Product Images
