High-speed LVDS multiplexer, supporting a 3200Mbps data rate and 2.5GHz maximum frequency. This surface mountable integrated circuit features a 16-pin QFN package with dimensions of 3mm x 3mm x 0.8mm. It operates from a 2.375V to 2.625V supply voltage, with a nominal 2.5V. The device offers 2 input lines, 1 output line, and 2 receivers, with a propagation delay of 330ps. RoHS compliant and lead-free.
Frequency2.5GHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY58611UMG technical specifications.
General
Package/Case
QFN
Data Rate
3200Mbps
Height
0.8mm
Independent Circuits
1
Lead Free
Lead Free
Length
3mm
Max Frequency
2.5GHz
Max Input Voltage
4V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
2.625V
Min Supply Voltage
2.375V
Mount
Surface Mount
Number of Channels
2
Number of Drivers
1
Number of Elements
1
Number of Input Lines
2
Number of Output Lines
1
Number of Receivers
2
Operating Supply Voltage
2.5V
Package Quantity
100
Packaging
Rail/Tube
Propagation Delay
330ps
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Precision Edge®
Supply Type
Single
Supply Voltage-Nom
2.635V
Turn-On Delay Time
0.47ns
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip SY58611UMG Datasheet
Download the complete datasheet for Microchip SY58611UMG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

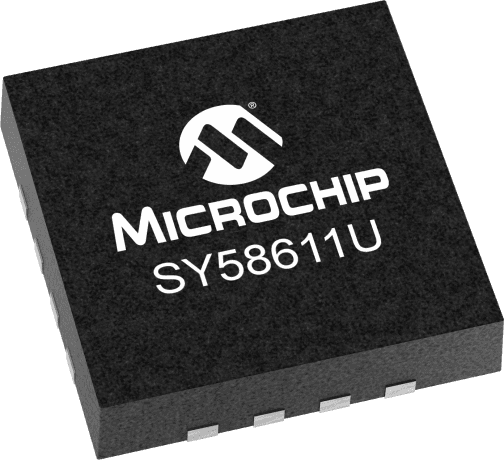

Product Images
