PECL to TTL translator, true output, DSO8 package. This unidirectional, single-channel logic translator operates from a 3V to 3.6V supply, with a nominal 3.3V operating voltage. Featuring a maximum operating frequency of 275MHz and a propagation delay of 2.5ns, it supports a high level output current of -3mA and a low level output current of 24mA. The surface mount component has a compact 2mm x 2mm x 0.85mm footprint and is supplied on tape and reel.
Current14mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY89321LMG-TR technical specifications.
General
Channel Type
Unidirectional
Height
0.85mm
High Level Output Current
-3mA
Lead Free
Lead Free
Length
2mm
Logic Function
Translator
Low Level Output Current
24mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Operating Frequency-Max
275MHz
Operating Supply Voltage
3.3V
Package Quantity
1000
Packaging
Tape and Reel
Propagation Delay
2.5ns
Radiation Hardening
No
RoHS Compliant
Yes
Series
SY89
Supply Current
14mA
Technology
ECL
Turn-On Delay Time
2.5ns
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Microchip SY89321LMG-TR Datasheet
Download the complete datasheet for Microchip SY89321LMG-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

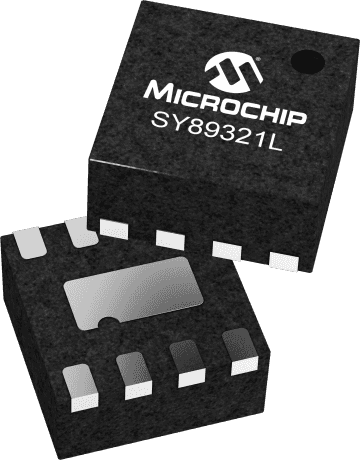

Product Images
