Dual TTL/CMOS to PECL translator featuring complementary outputs. This unidirectional logic translator supports two channels with a maximum operating frequency of 800MHz and a propagation delay of 300ps. Operating from a 3V to 5.5V supply, it offers a high-level output current of -50mA and a low-level output current of 50mA. The surface mount component is packaged in a compact 2mm x 2mm x 0.85mm PDSO8 package, suitable for tape and reel deployment.
Current25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY89322VMG-TR technical specifications.
General
Channel Type
Unidirectional
Height
0.85mm
High Level Output Current
-50mA
Lead Free
Lead Free
Length
2mm
Logic Function
Translator
Low Level Output Current
50mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
1
Operating Frequency-Max
800MHz
Package Quantity
1000
Packaging
Tape and Reel
Propagation Delay
300ps
Radiation Hardening
No
RoHS Compliant
Yes
Series
SY89
Supply Current
25mA
Technology
ECL
Turn-On Delay Time
0.6ns
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Microchip SY89322VMG-TR Datasheet
Download the complete datasheet for Microchip SY89322VMG-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

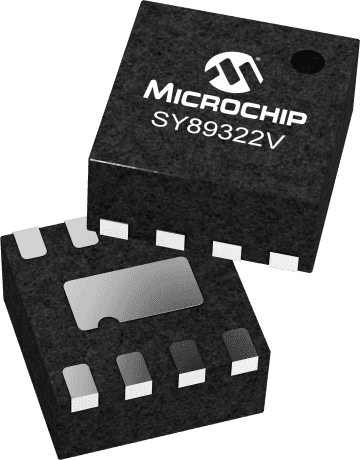

Product Images
