Dual PECL to TTL Translator, True Output, PDSO8. This unidirectional logic translator features two channels and operates with a 3.3V supply voltage, supporting a range of 3V to 3.6V. It boasts a maximum operating frequency of 275MHz with a propagation delay of 1.9ns and a turn-on delay time of 2.5ns. Designed for surface mount applications, this component offers a high level output current of -3mA and a low level output current of 24mA, with a supply current of 30mA. Operating across a temperature range of -40°C to 85°C, it is lead-free and RoHS compliant.
Current30mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY89323LMG-TR technical specifications.
General
| Channel Type | Unidirectional |
| Height | 0.9mm |
| High Level Output Current | -3mA |
| Lead Free | Lead Free |
| Length | 2mm |
| Logic Function | Translator |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Circuits | 1 |
| Operating Frequency-Max | 275MHz |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Propagation Delay | 1.9ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SY89 |
| Supply Current | 30mA |
| Technology | ECL |
| Turn-On Delay Time | 2.5ns |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SY89323LMG-TR Datasheet
Download the complete datasheet for Microchip SY89323LMG-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

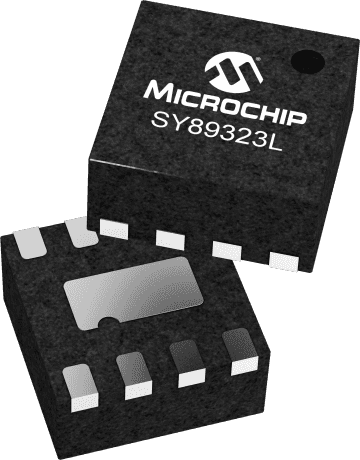

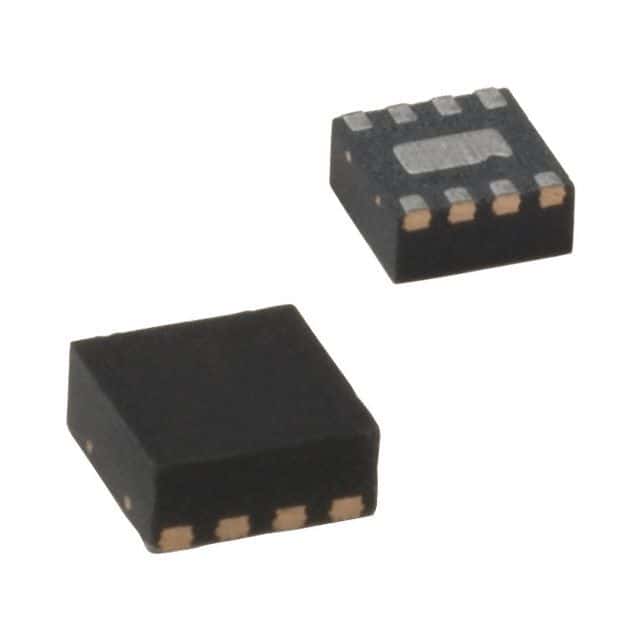

Product Images
