Technical Specifications
Microchip SY89327LMG-TR technical specifications.
General
| Channel Type | Unidirectional |
| Data Rate | 2.5Gbps |
| Height | 0.85mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Logic Function | Translator |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Propagation Delay | 0.4ns |
| RoHS Compliant | Yes |
| Series | SY89 |
| Supply Voltage-Nom | 3.3V |
| Technology | ECL |
| Turn-On Delay Time | 0.4ns |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip SY89327LMG-TR Datasheet
Download the complete datasheet for Microchip SY89327LMG-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

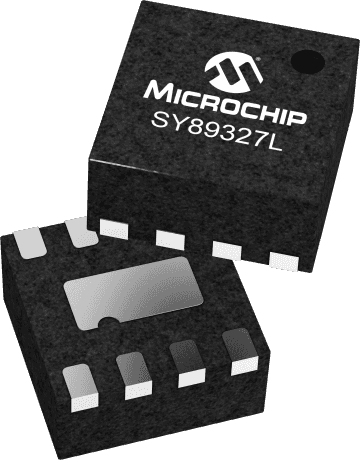

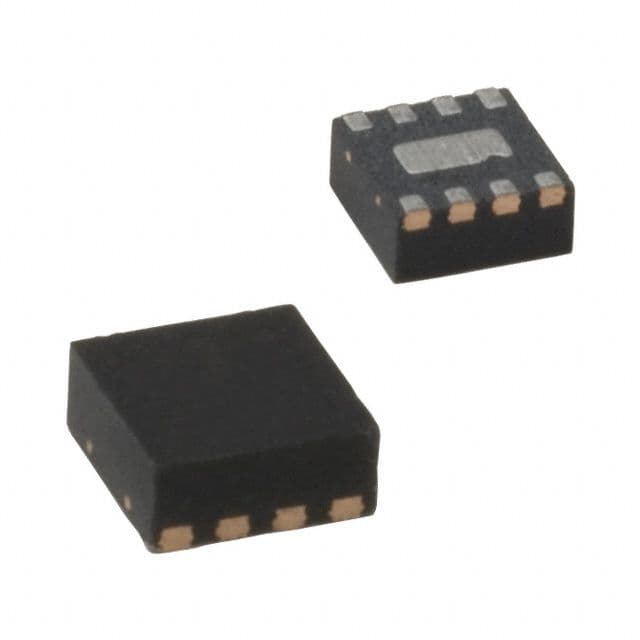

Product Images
