High-performance clock fanout buffer, featuring a 1:4 output ratio and a maximum operating frequency of 2.5GHz. This integrated circuit offers CML input and supports a wide operating temperature range from -40°C to 85°C. Designed for surface mount applications, it operates from a 2.375V to 2.625V supply voltage with a typical supply current of 75mA. The component boasts a low propagation delay of 570ps and a turn-on delay time of 0.57ns, packaged in a compact 3mm x 3mm x 0.8mm QFN.
Frequency2.5GHz
Current75mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY89832UMG technical specifications.
General
Frequency
2.5GHz
Height
0.8mm
Input
CML
Lead Free
Lead Free
Length
3mm
Logic Function
Clock
Max Frequency
2.5GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
2.625V
Min Supply Voltage
2.375V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Outputs
4
Operating Frequency-Max
2.5GHz
Operating Supply Voltage
2.5V
Package Quantity
100
Packaging
Rail/Tube
Propagation Delay
570ps
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Precision Edge®
Supply Current
75mA
Turn-On Delay Time
0.57ns
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip SY89832UMG Datasheet
Download the complete datasheet for Microchip SY89832UMG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

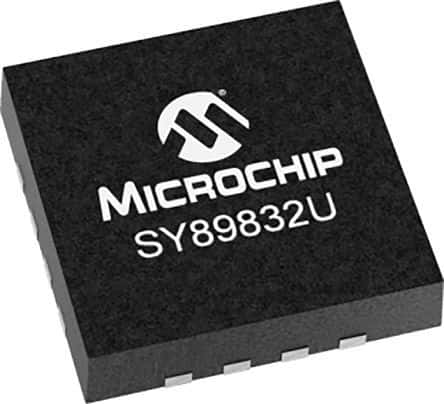

Product Images
