High-performance 2GHz clock fanout buffer, featuring 8 outputs from a single CML input. This surface mount integrated circuit operates from a 3V to 3.6V supply, with a typical 3.3V operating voltage and 75mA supply current. It offers a maximum propagation delay of 600ps and a turn-on delay of 0.6ns. Packaged in a compact 3mm x 3mm x 0.8mm QFN, this RoHS compliant component is suitable for demanding timing applications.
Frequency2GHz
PackageQFN
Current75mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY89833LMG technical specifications.
General
Package/Case
QFN
Height
0.8mm
Input
CML
Lead Free
Lead Free
Length
3mm
Max Frequency
2GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Outputs
8
Operating Frequency-Max
2GHz
Operating Supply Voltage
3.3V
Package Quantity
100
Packaging
Rail/Tube
Propagation Delay
600ps
Radiation Hardening
No
RoHS Compliant
Yes
Series
Precision Edge®
Supply Current
75mA
Turn-On Delay Time
0.6ns
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip SY89833LMG Datasheet
Download the complete datasheet for Microchip SY89833LMG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

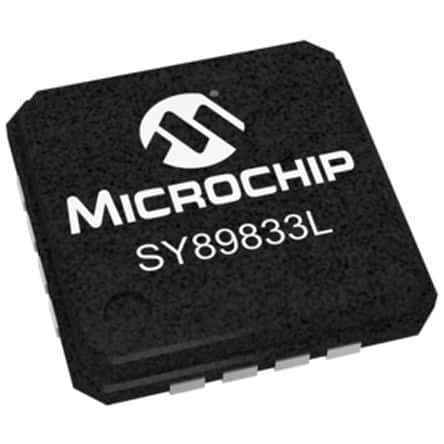

Product Images
