High-performance clock buffer and driver featuring a 2-line to 1-line multiplexer with complementary outputs. Operates with a maximum frequency of 2GHz and a supply voltage range of 2.375V to 3.6V. Offers a propagation delay of 625ps and a turn-on delay time of 0.9ns. This surface mount component is housed in a QFN package and operates across a temperature range of -40°C to 85°C.
Frequency2GHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip SY89840UMG technical specifications.
General
Package/Case
QFN
Independent Circuits
1
Lead Free
Lead Free
Max Frequency
2GHz
Max Input Voltage
4V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.375V
Mode of Operation
DIFFERENTIAL
Mount
Surface Mount
Number of Input Lines
2
Number of Output Lines
1
Number of Outputs
1
Package Quantity
100
Packaging
Rail/Tube
Propagation Delay
625ps
Quiescent Current
95mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
Precision Edge®
Supply Type
Single
Supply Voltage-Nom
3.6V
Throw Configuration
DPST
Turn-On Delay Time
0.9ns
Compliance
RoHS
Compliant
Datasheet
Microchip SY89840UMG Datasheet
Download the complete datasheet for Microchip SY89840UMG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

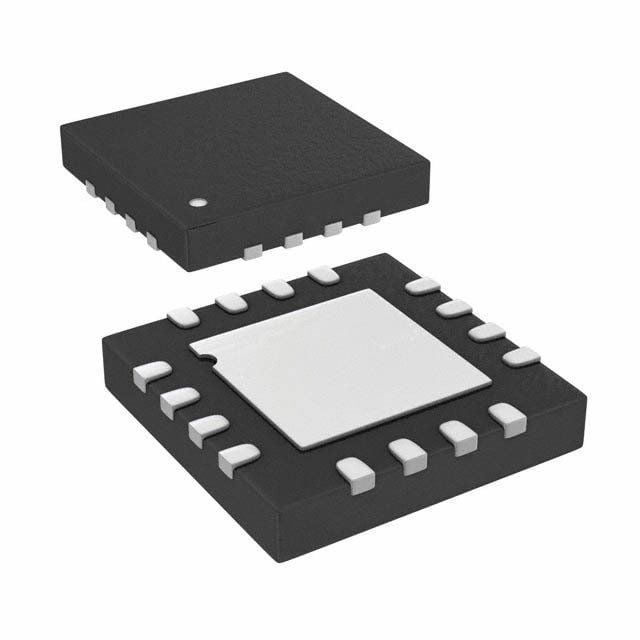

Product Images
